Efficient
Motor efficiency class IE3 with DRN.. asynchronous motor or IE5 with DR2C.. synchronous motor according to IEC TS 60034-30-2
Scalable
Nominal power ratings for drives with DRN.. from 0.37 to 7.5 kW (DRN..) or with DR2C.. from 0.75 to 2.4 kW (up to 7.5 kW in preparation). Mechanical brake and integrated maintenance switch optional.
Flexible
Can be combined with all standard gear units in the SEW-EURODRIVE modular system. Resistance, even under harsh environmental conditions, enables universal use in different industrial sectors.
Versatile
Advanced sensorless open-loop control and optional single-turn encoder provide reliable solutions for a wide range of applications.
Cost-effective
Industrial connectors optional for easy and time-saving installation. Innovative Premium Sine Seal rotary shaft seal reduces wear in the drive unit and increases life expectancy.
MOVIMOT® advanced complements existing MOVI‑C® products in terms of functionality and consistency and extends the range of possible applications for our decentralized drive technology, which has been proving its worth for decades.
The MOVIMOT® advanced drive unit consists of a decentralized inverter and optionally an IE3 asynchronous motor of the DRN.. series or an IE5 synchronous motor of the DR2C.. series.
By activating this video, Youtube will transfer data to the USA. More in our privacy policy.
Integrating an IE3 asynchronous motor of the DRN.. series or an energy-efficient IE5 synchronous motor of the DR2C.. series with the new, decentralized inverter from the MOVI‑C® modular automation system means the decentralized drive unit achieves the maximum system efficiency IES2 to IEC 61800-9-2. The integrated digital interface ensures quick, easy and convenient startup, even with the widest range of gearmotor options.

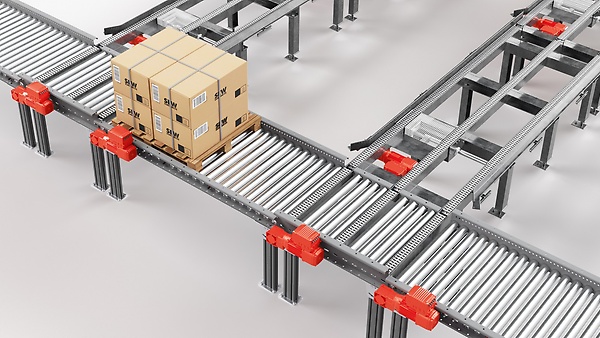

The MOVIMOT® advanced drive unit is our all-rounder that can be adapted precisely to meet your needs. MOVIMOT® advanced can be combined with all standard gear units in series 7 and 9 for versatile and flexible use. It's a true all-rounder for numerous intelligent logistics applications.
| Motor size | Star connection | Delta connection | ||||
| Standard inverter assignment | Nominal torque Nm | Nominal power kW | Standard inverter assignment | Nominal torque Nm | Nominal power kW | |
| DRN71M | 2 A (0020) | 2.5 | 0.37 | 2 A (0020) | 1.8 | 0.55 |
| DRN80MK | 2 A (0020) | 3.7 | 0.55 | 2.5 A (0025) | 2.5 | 0.75 |
| DRN80M | 2.5 A (0025) | 5.1 | 0.75 | 3.2 A (0032) | 3.6 | 1.1 |
| DRN90S | 3.2 A (0032) | 7.5 | 1.1 | 4.0 A (0040) | 4.9 | 1.5 |
| DRN90L | 4.0 A (0040) | 10.2 | 1.5 | 5.5 A (0055) | 7.2 | 2.2 |
| DRN100LS | 5.5 A (0055) | 15 | 2.2 | 7.0 A (0070) | 9.9 | 3.0 |
| DRN100L | 7.0 A (0070) | 19.7 | 3.0 | 9.5 A (0095) | 13.2 | 4.0 |
| DRN112M | 9.5 A (0095) | 26.3 | 4.0 | 12.5 A (0125) | 18.1 | 5.5 |
| DRN132S | 12.5 A (0125) | 36.2 | 5.5 | 16.0 A (0160) | 24.7 | 7.5 |
| DRN132M | 16.0 A (0160) | 49.4 | 7.5 | – | – | – |
Technical data with DR2C.. synchronous motor
Technical data at operating points that correspond to the IE5 efficiency class. For optimum energy efficiency of your system.
| Motor size | Speed class 2000 | Speed class 3000 | ||||
| Standard inverter assignment | Nominal torque Nm | Nominal power kW | Standard inverter assignment | Nominal torque Nm | Nominal power kW | |
| DR2C71MSA4 | 2 A (0020) | 3.3 | 0.77 | 3.2 A (0032) | 3.55 | 1.1 |
| DR2C71MA4 | 2.5 A (0025) | 4.95 | 1.07 | 4.0 A (0040) | 5.3 | 1.7 |
| DR2C80MKA4 | 4.0 A (0040) | 7.1 | 1.63 | 5.5 A (0055) | 7.2 | 2.3 |
| DR2C80MA4 | 5.5 A (0055) | 10.8 | 2.26 | |||
Technical data at maximum thermally permitted power for maximum power utilization of the drive (corresponds to efficiency class < IE5)
| Motor size | Speed class 2000 | Speed class 3000 | ||||
| Standard inverter assignment | Nominal torque Nm | Nominal power kW | Standard inverter assignment | Nominal torque Nm | Nominal power kW | |
| DR2C71MSA4 | 2.5 A (0025) | 4.3 | 0.9 | 3.2 A (0032) | 4.3 | 1.35 |
| DR2C71MA4 | 4.0 A (0040) | 6.7 | 1.4 | 5.5 A (0055) | 6.7 | 2.1 |
| DR2C80MKA4 | 5.5 A (0055) | 9 | 1.88 | 5.5 A (0055) | 7.2 | 2.26 |
| DR2C80MA4 | 5.5 A (0055) | 11.6 | 2.43 | |||
With its integrated, decentralized frequency inverter, MOVIMOT® advanced offers complete flexibility for your application.
Our MOVIMOT® performance drive unit is the go-to expert for high precision, flexibility and overload capacity.
From control technology to inverters and drives, whether centralized or decentralized, there are no language barriers with any of the components from the MOVI-C® modular automation system.
Plan the design of your machines or systems with a single control, communication or installation topology. Our hardware and software will ensure seamless integration/assimilation and simply get things moving.
Even with large, decentralized systems, complete individuality is no problem. The MOVIMOT® advanced drive unit offers interfaces to any communication bus. Direct connection to the controller is just one of many options.
Data transfer between motor and inverter
The MOVILINK® DDI integrated digital interface means no additional installation is required for transfer of the electronic nameplate and various sensor signals between motor and inverter.
Encoder option
Optional plug connectors
Further options
